Heritage Conservation Range

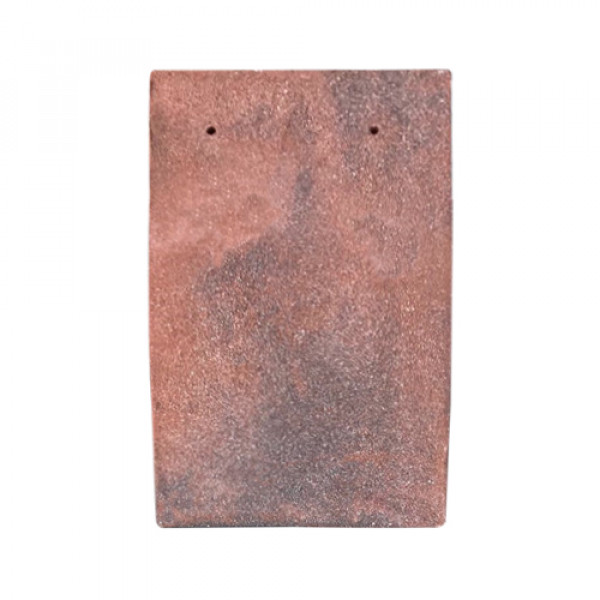

A traditional handmade clay tile with a finely sanded surface, suitable for main roof and vertical applications.

The Conservation Range, a truly individual statement can be made by mixing colours to create a totally bespoke roof. Blended shades add that extra element of uniqueness, so imaginative designs and concepts can be incorporated to provide something that is an individual to your project. For those that like pre-blended products. If you seek to make a bespoke statement, The Conservation Range blends can be made by mixing colours to create a unique roof.

Technical data

Minimum Roof Pitch:
Roof: 35° / Vertical: 75°

Headlap (Minimum):
Roof: 65mm / Vertical: 38mm

Batten spacing at maximum gauge:
Roof: 100mm / Vertical: 114mm

Size of tile:
Roof: 265 x 165mm / Vertical: 265 x 165mm

Covering Capacity:
Roof: 60 per m2 / Vertical: 53 per m2

Cover width:
Roof: 165mm / Vertical: 165mm

Weight as laid:
Roof: 75kg per m2 / Vertical: 66.25kg per m2

Battens per M2:
Roof: 10m / Vertical 8.7m

Batten Size:
Roof: 38 x 25mm / Vertical: 38 x 25mm

Recommended nail type:
Roof: 40 x 2.65mm Alloy clout / Vertical: 40 x 2.65mm Alloy clout

 The Conservation Peg Tile and Classic Edwardian technical data varies slightly from the above (Conservation Black, Dark, Red and Weathered) please download the data cards opposite for further details.

Please note all tiles and slates should be fixed in accordance with manufacturers requirements and BS 5534.



Features

Carefully crafted to replicate all the features of handmade the Conservation hand-crafted range of tiles offers an excellent alternative when budget restrictions are a concern, but without compromising quality or durability.

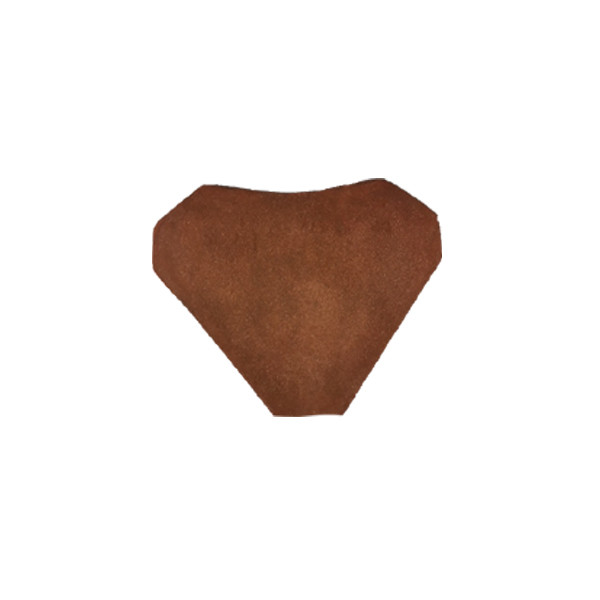

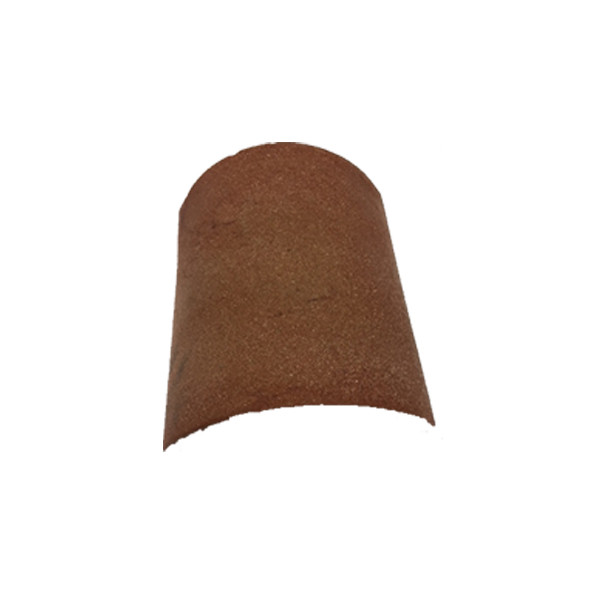

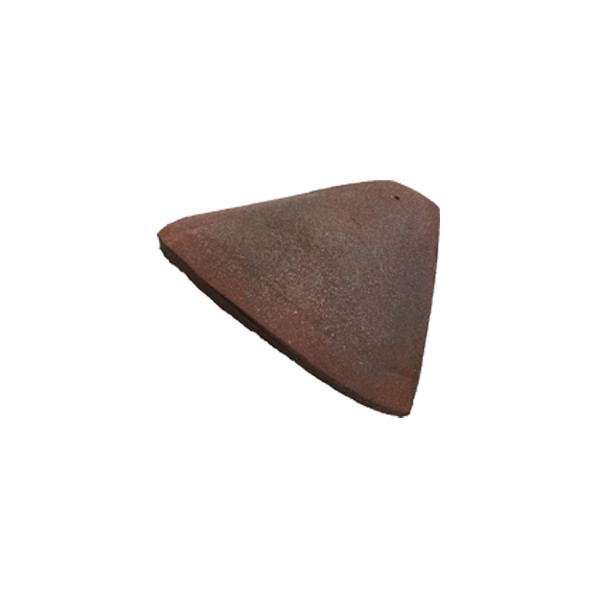

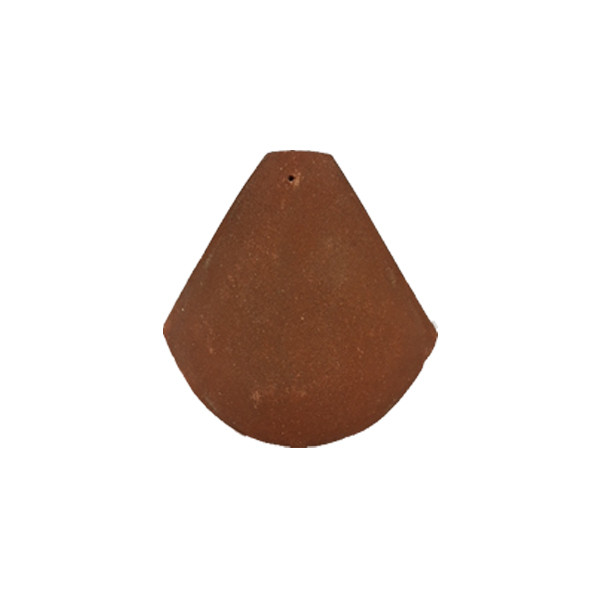

Manufactured using high-quality clay, achieving high strength and durability properties, giving homeowners and contractors peace of mind for many years to come. The conservation range comes with a complete set of associated fittings, including Hog Back Ridge, Half Round Ridge, Bonnet Hips, Valley tiles and External Angles.

A wide colour choice, including innovative shades and bespoke styles, is available, allowing the architect, specifier or homeowner complete versatility to create a stunning design that will enhance any project.

  • Choice of 6 stunning colours
  • Create your own unique roof tile
  • Large range of fittings
  • Minimum roof pitch - 35° Roof and 75° Vertical
  • Hand-crafted characteristics
  • 50-year guarantee

 Recommendations

  • Tiles laid to be drawn from a minimum of 3 separate pallets to ensure the best effect
  • Tiles are delivered on non-returnable shroud-wrapped pallets
  • Pallets on site should be on firm, dry and level ground, no more than 2 pallets high
  • Due to limitations of the print process, colours should be selected from actual samples

Colours

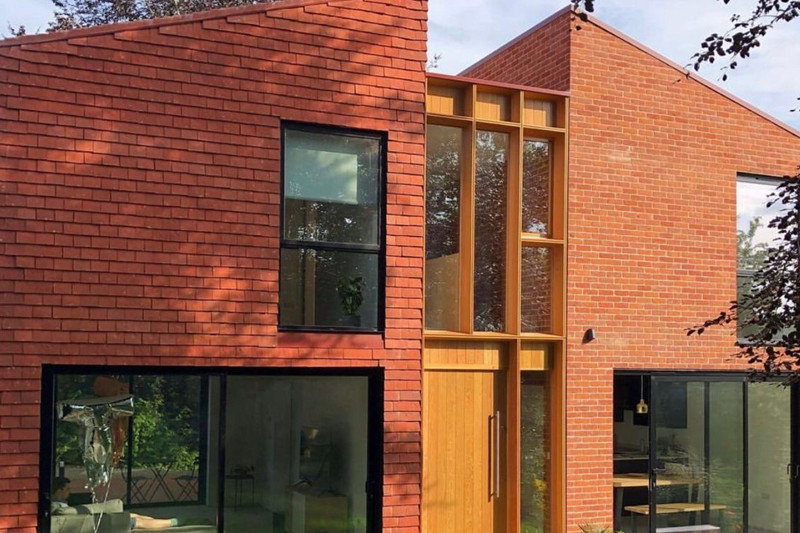

Conservation Red

Conservation Weathered

Conservation Dark

Conservation Black

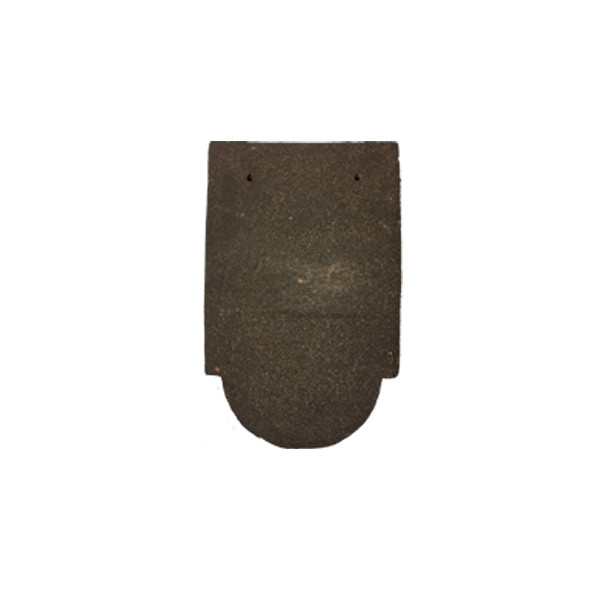

Conservation Peg Tile

Classic Edwardian

Downloads

Conservation Red Data Card.pdf Conservation Weathered Data Card.pdf Conservation Dark Data Card.pdf Conservation Black Data Card.pdf Conservation Peg Tile Data Card.pdf Classic Edwardian Data Card.pdf
