Blended shades add that extra element of uniqueness, so imaginative designs and concepts can be incorporated to provide something that is an individual to your project. For those that like pre blended product, we can supply these too with our Hamlet Mix and Birchwood Mix product offerings.
If you seek to make a bespoke statement, Heritage Clayhall blends can be made by mixing colours to create a unique roof.
Technical data
Minimum Roof Pitch:
Roof: 35° / Vertical: 75°
Headlap (Minimum):
Roof: 65mm / Vertical: 38mm
Batten spacing at maximum gauge:
Roof: 100mm / Vertical: 114mm

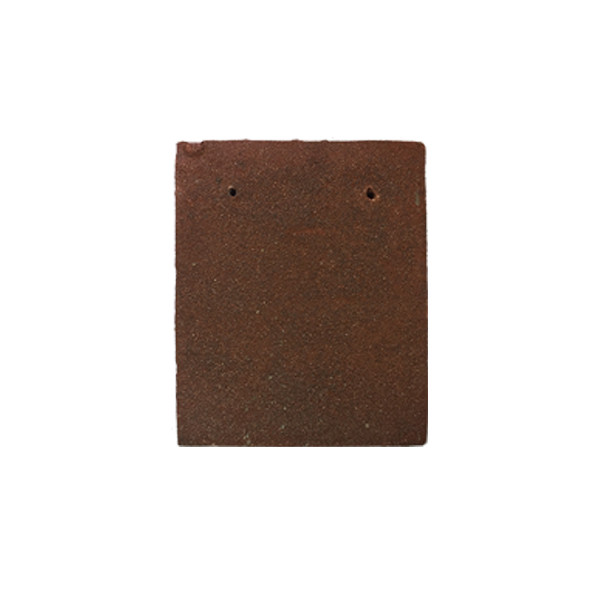

Size of tile:
Roof: 265 x 165mm / Vertical: 265 x 165mm
Covering Capacity:
Roof: 60 per m2 / Vertical: 53 per m2
Cover width:
Roof: 165mm / Vertical: 165mm
Weight as laid:
Roof: 66kg per m2 / Vertical: 58kg per m2
Battens per M2:
Roof: 10m / Vertical 8.7m
Batten Size:
Roof: 38 x 25mm / Vertical: 38 x 25mm
Recommended nail type:
Roof: 40 x 2.65mm Alloy clout / Vertical: 40 x 2.65mm Alloy clout
Please note all tiles and slates should be fixed in accordance with manufacturers' requirements and BS 5534.
Features
Carefully crafted to replicate all the features of handmade the Clayhall hand-crafted range of tiles offers an excellent alternative when budget restrictions are a concern, but without compromising quality or durability.
Manufactured using traditional skills coupled with modern kiln technology, the Heritage Tile range is second to none, offering old-world character and charm, yet able to meet modern, contemporary requirements.
A wide colour choice, including innovative shades and bespoke styles, allows the architect, specifier or homeowner complete versatility to create a stunning design that will enhance any project.
- Choice of 5 stunning colours
- Create your unique roof tile

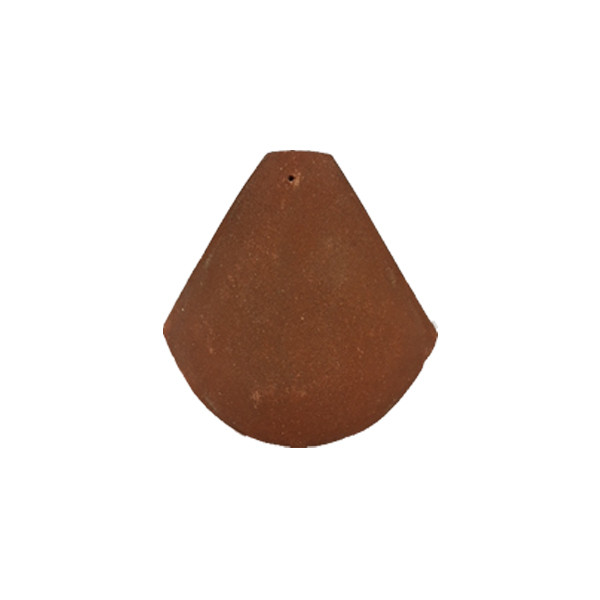

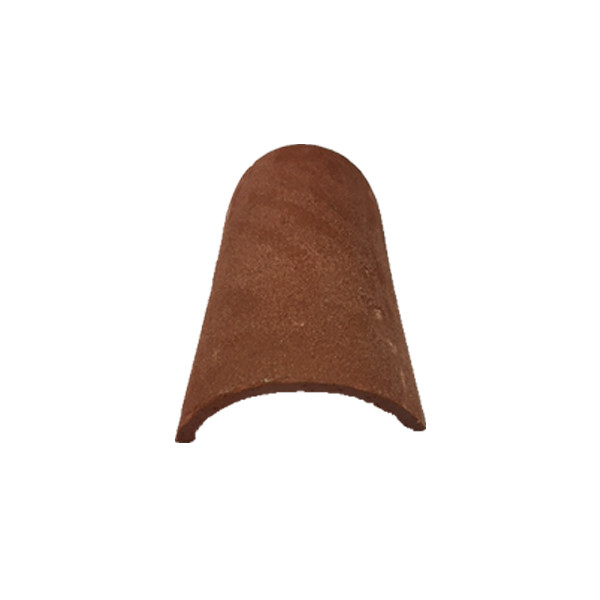

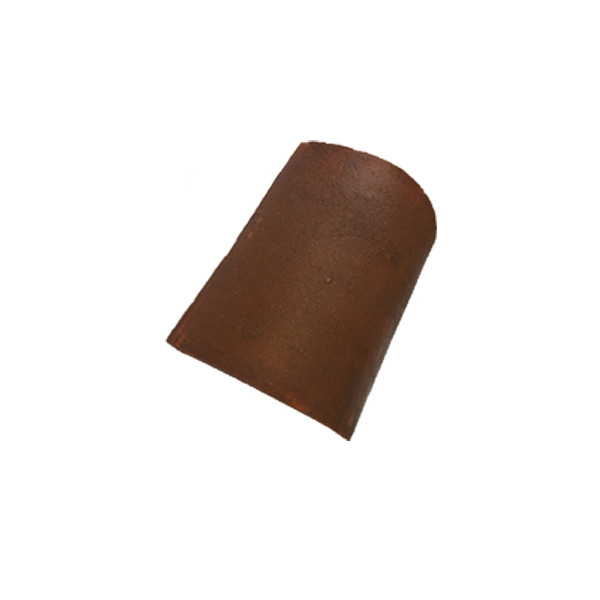

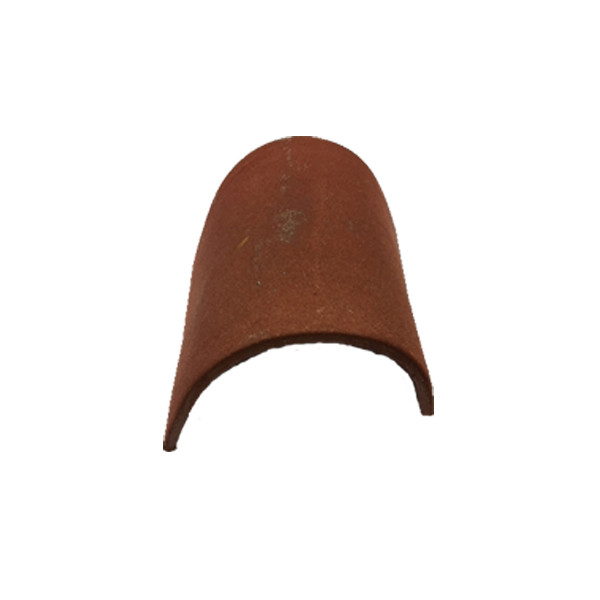

- Large range of fittings
- Minimum roof pitch - 35° Roof and 75° Vertical
- Hand-crafted characteristics
- 50-year guarantee
Recommendations
- Tiles laid to be drawn from a minimum of 3 separate pallets to ensure the best effect
- Tiles are delivered on non-returnable shroud-wrapped pallets
- Pallets on site should be on firm, dry and level ground, no more than 2 pallets high
- Due to limitations of the print process, colours should be selected from actual samples
Colours
![](https://roofingdistributionuk.com/imagecache/cms200/xchQth1wPterewtJZJJfMrtIzpRUlpnCqbZ395onA.png.pagespeed.ic.cIUlMWIUs3.png)
Clayhall Birchwood Mix
![](https://roofingdistributionuk.com/imagecache/cms200/xzBH4lKRcaHQRENPUhZshCaqGcZemzwNfFLvuh3dJ.png.pagespeed.ic.GxQHFQE1J7.png)

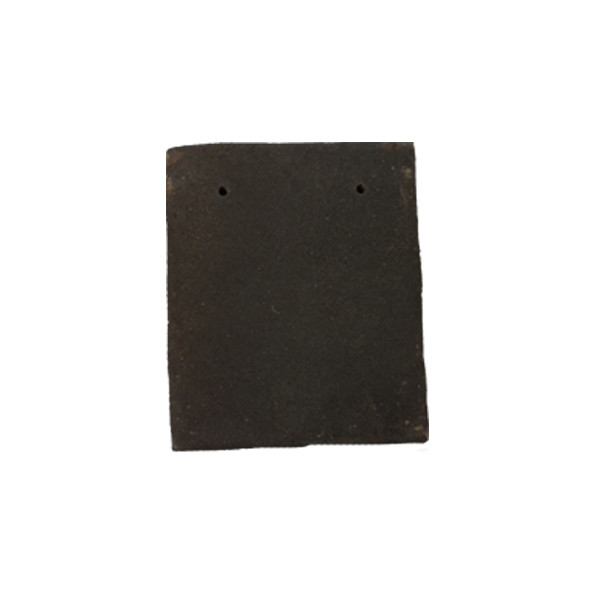

Clayhall Dark Blend
![](https://roofingdistributionuk.com/imagecache/cms200/xvEaBfnOwj3UarJ6xyLVYPO8JCn3nYj49cODnZInq.png.pagespeed.ic.rqRugbBgq8.png)
Clayhall Hamlet Mix
![](https://roofingdistributionuk.com/imagecache/cms200/xfFSHu03IjzUlqg0OJ8BVBrbwZAuQk46oWOYsraJh.png.pagespeed.ic.JSn5J8Rap4.png)
Clayhall Medium Blend
![](https://roofingdistributionuk.com/imagecache/cms200/xdhrHJb2WerbWNfcfBbbgNu1pv4oNIhypda9rIbrW.png.pagespeed.ic.Zx8z88GM_C.png)

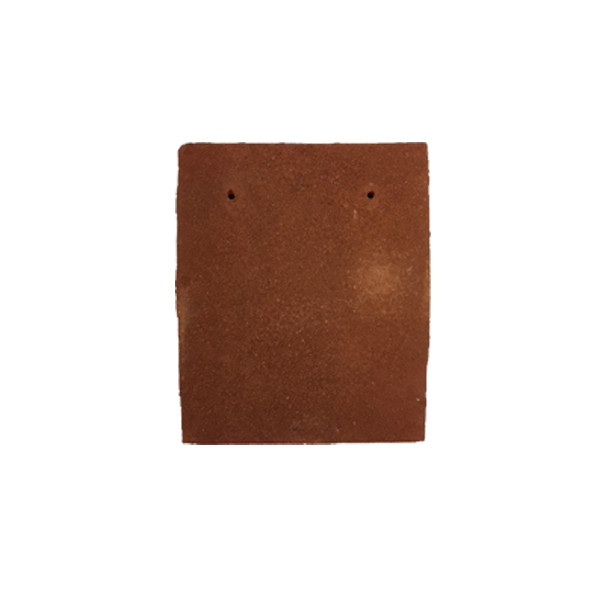

Clayhall Red Blend
Downloads
Clayhall Birchwood Data Card.pdf Clayhall Dark Blend Data Card.pdf Clayhall Hamlet Mix Data Card.pdf Clayhall Medium Blend Data Card.pdf Clayhall Red Blend Data Card.pdfHeritage Clayhall Range Options & Accessories
