Chartwell Traditional Clay Plain Tile
The Chartwell is beautifully crafted clay plain roof tile and is suitable for most projects and is available in Hermitage and Murrow. RDUK European manufacturing partners Edilians fully comply with the requirements of BS EN 1304; the European Standard for clay tiles & fittings & are manufactured under a Quality Management system certified to comply with ISO 9001.
Technical data
Quantity per pallet:
896 tiles
Coverage per m²:
59
Tile size:
270mm x 170mm
Nominal gauge:
100mm
Linear cover:
170mm
Headlap (min):
70mm at 100mm gauge
Unit weight in Kg:
1.3
Weight:
77 Kg per m²
Minimum roof pitch:
35°
Batten coverage:
10m per m²
Recommended batten size:
25 x 38mm
Nail size:
38/40 x 2.65mm
Features
The Edilians Phalempin factory in Northern France produces some of their most popular clay roof tiles, namely their 17 x 27 and Chartwell plain tiles, as well as the fittings and accessories to match.
With a workforce of just 30 people, more than 45,000 tonnes of clay plain tiles and 2000 tonnes of accessories are produced annually at Phalempin, 75% of which are exported to the UK, due in part to the factories’ location in Northern France, but also certainly due to the quality and popularity of the wide range of colours available.
- The distressed, uneven surface gives the appearance of mature, seasoned hand-made tiles
- Ecologically friendly product with high residual value
- Comprehensive ventilation systems including the dry-fix option
- Full range of colour-matched accessories
- Comprehensive 30-year durability guarantee
- Natural product (Silicone Free)
- Free Technical Support
Installation
All tiles, fittings & accessories should be installed in accordance with the recommendations given in BS5534: the British Standard Code of practice for slating & tiling. Sitework should be carried out in accordance with BS 8000-6: the British Standard for workmanship on building sites. Contact RDUK for technical support including estimates and fixing specification.
Tile vent range
Our collection of vent tiles is available on our small, medium and large format clay and concrete roof tiles. The vents are manufactured to a high standard and are available in all colours and made to blend in discreetly with our existing roof tile product range, offering the perfect solution to roof space ventilation.
Colour options
Vent tiles are available in five standard colours to match your RDUK roof tiles:
- Brown
- Terracotta
- Antique Red
- Grey
- Anthracite
For further details contact our sales team or download the data sheet in our download section opposite.
Colours
Hermitage
Murrow
Chartwell Vent Tile
Downloads

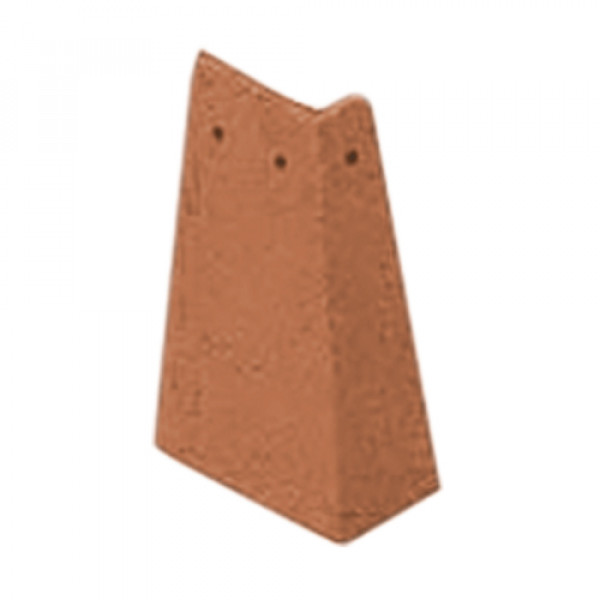

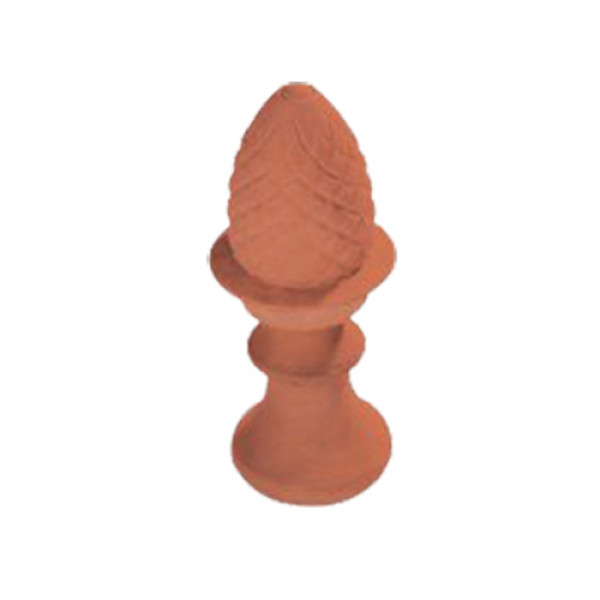

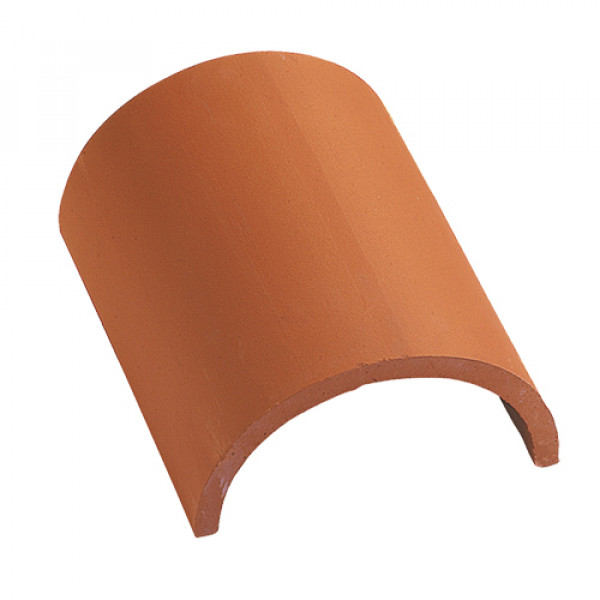

Chartwell Brochure.pdf Edillians Product Brochure.pdf RDUK Plain Tile Vents Data Card.pdfChartwell 17x27 Traditional Clay Plain Tile Options & Accessories
