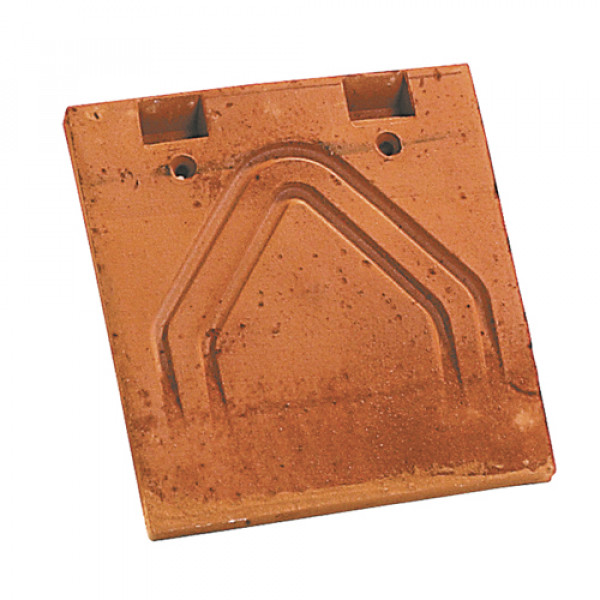

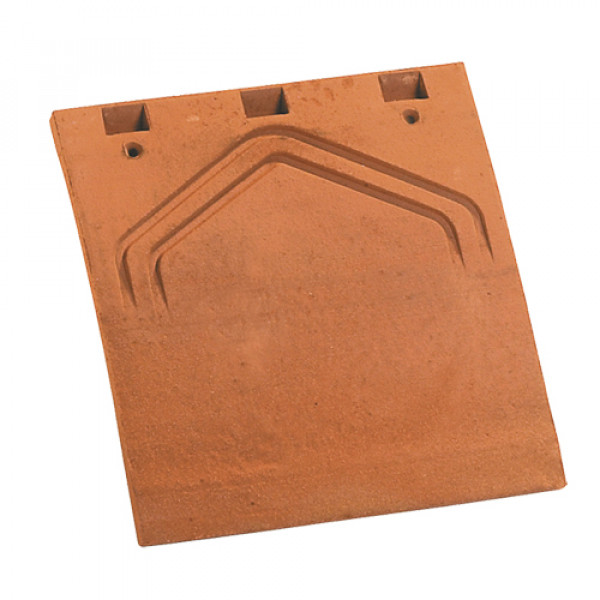

Ste Foy 17x27 Clay Plain Tile

Technical data

Quantity per pallet:
720 tiles

Coverage per m²:
From 59 to 65

Nominal gauge:
From 90mm to 100mm

Overall length:
272mm

Overall width:
170mm

Working width:
170mm

Laid:
Broken bonded

Unit weight in Kg:
1.20

DTU Implementation:
40-23

Tilery:
Ste Foy l’Argentière Reference 501

Linear metres of battens per m² of roof:
From 10 ml to 11.11 ml

Features

A hundred years of experience, using clays of the highest quality, give the products a level of finesse, that is quite exceptional, and technical qualities, particularly in terms of resistance to frost, bending and permeability. channels ensure enhanced performance at roof pitches at 35° and above.

The variety of colours in the Ste Foy range offers a great richness of materials and shades. You can mix them as you wish so as to emphasise a particular look, or indeed create an effect of your own.

• New Millésime range with irregular hanging lengths
• Plain tiles best seller
• Unique colour tones
• High-quality clays
• Easy to implement
• Natural Product (Silicone Free)
• Pre-mixed blend options
• Free Technical Support

Installation

All tiles, fittings & accessories should be installed in accordance with the recommendations given in BS5534: the British Standard Code of practice for slating & tiling. Sitework should be carried out in accordance with BS 8000-6: the British Standard for workmanship on building sites. Contact RDUK for technical support including estimates and fixing specification.

Colours

Rouge Enta

Millesime

Brown

Chevreuse

Rouge Nuance

Terre De Beauce
