Beauvoise 20 Clay Interlocking Plain Tile

Technical data

Quantity per pallet:
480 tiles

Coverage at 245mm gauge:
20.5 tiles per m2

Batten gauge*:
245mm

Overall length:
322mm

Overall width:
235mm

Cover width:
200mm

Headlap:
77mm

Weight per tile:
2.2kg

Weight per m2 at maximum gauge:
45.1kg

Minimum roof pitch:
22.5°

Batten coverage m2:
4.08m

Batten sizes:
38 x 25mm for rafter
centres up to 450mm

50 x 25mm for rafter
centres up to 600mm

Tile nail:
50 x 3.35mm aluminium clout head
*Always check each batch of tiles delivered to site to determine the actual gauge, which may vary slightly due to drying and firing shrinkage during the manufacturing process

Features

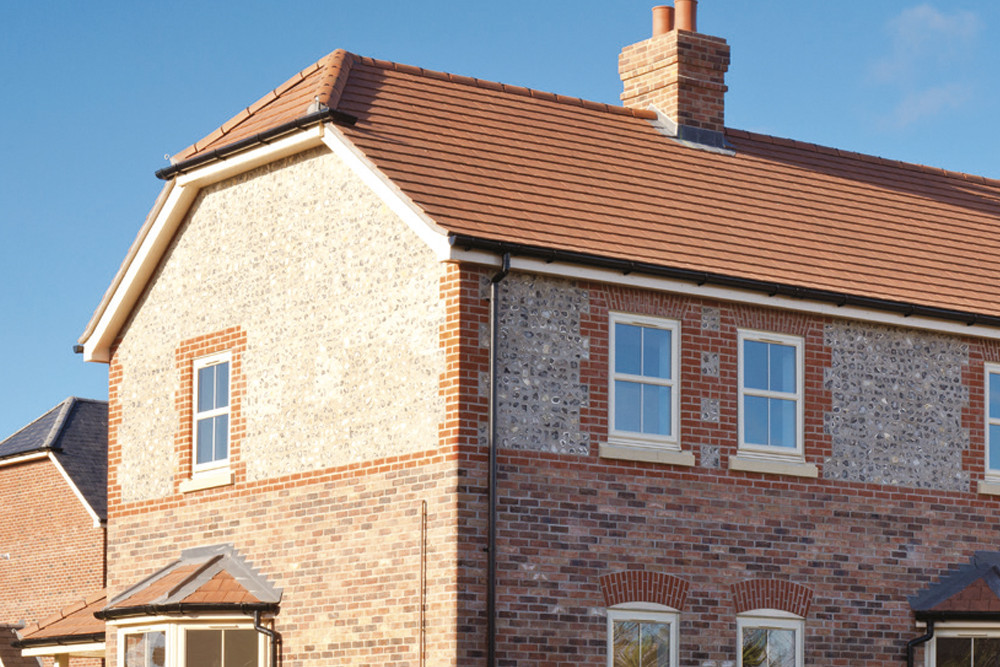

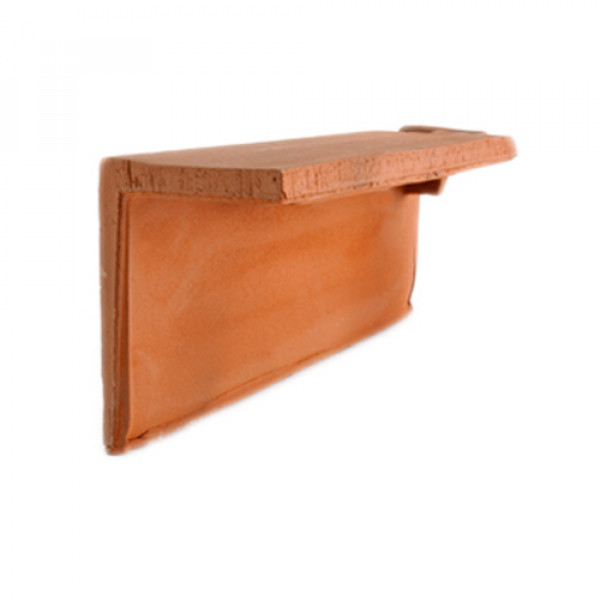

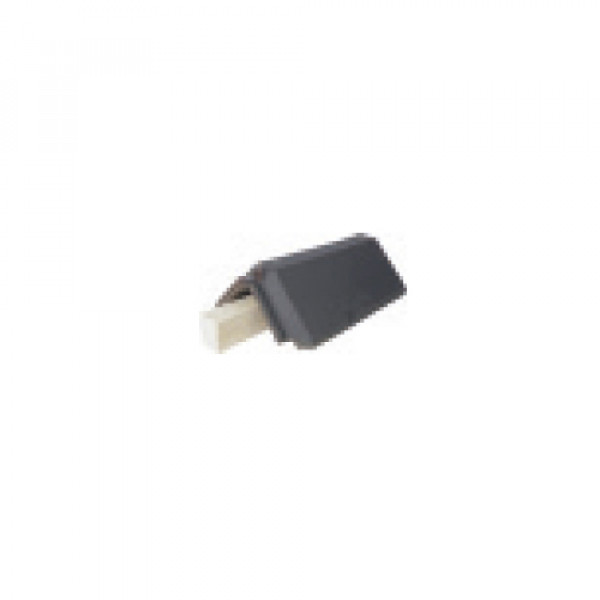

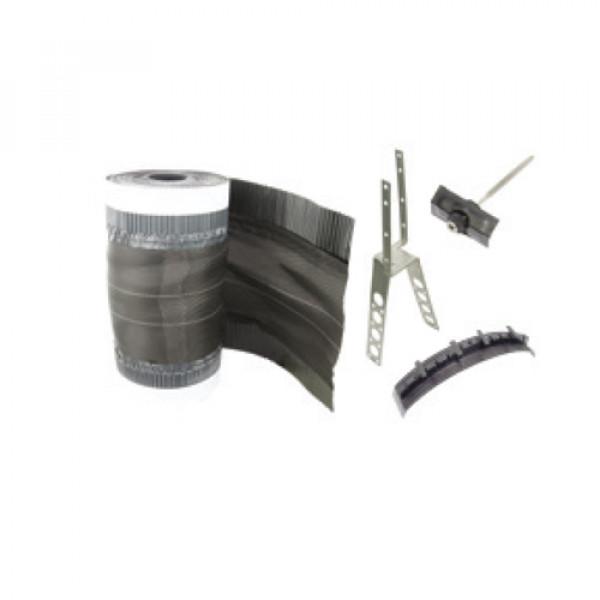

A small, elegant interlocking clay plain tile with an attractive thin leading edge, the BEAUVOISE 20 provides a cost-effective solution as an alternative to double lapped plain tiles. The BEAUVOISE 20 is an innovative modern roof tile and has proved to be a natural choice for new-build and renovation projects. With maintenance-free dry fix ridge, hip and verge options, the BEAUVOISE 20 is available in four distinctive and appealing colours.

• Reinforced waterproofing
  Refined profile
  Thin leading edge like traditional plain tiles
  Wide range of accessories
  Variable gauge
   A low 22.5° roof pitch

Colours

Burnt Red

Terre De Beauce

Vallee De Chevreuse

Slate
