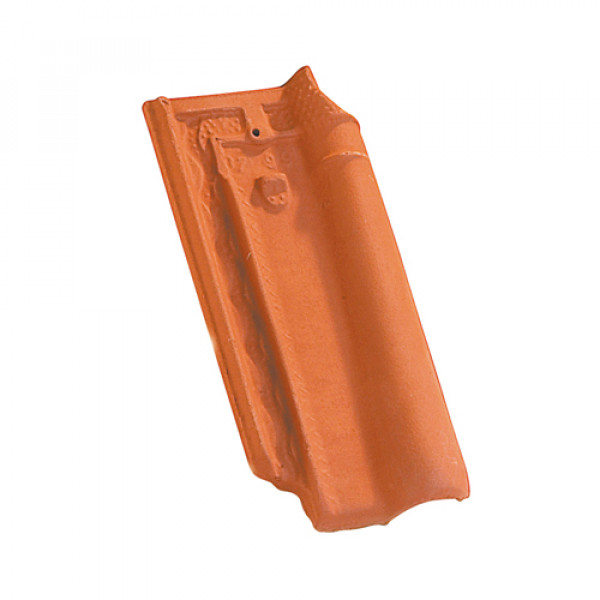

Monopole No.1 Clay Tile

The Monopole No.1 is a traditional single roman interlocking clay roof tile produced at Wardrecques in the north of France.

Monopole No.1 Clay Tile

Possessing a broad spectrum of colours, it will provide a perfect match with the local countryside. Replicating the style of the old houses around Boulogne, the "Vieux Nord" (Old North) colour will soon prove popular, particularly for renovation work, where its discreet and traditional style will fit in perfectly with the environment. Economical and versatile, the small modular size of the Monopole makes it ideal for a wide range of refurbishment and new build projects.

Manufacturing Standards

Edilians tiles fully comply with the requirements of BS EN 1304; the European Standard for clay tiles & fittings & are manufactured under a Quality Management system certified to comply with ISO 9001.

Technical data

Quantity per pallet:
600 tiles

Coverage:
22 tiles per m2

Nominal Gauge:
241mm

Overall length:
297mm

Overall width:
215mm

Working width:
189mm

Minimum head lap:
59mm

Unit Weight:
2.0kg

Weight per m2:
44kg

Minimum roof pitch:
25.0°

Batten coverage m2:
4.15 l/m

Batten sizes:
38 x 25mm rafter centres 450mm.
50 x 25mm rafter centres 600mm.

Tile nail:
50 x 3.35mm Aluminium clout head

 *Always check each batch of tiles delivered to site to determine the actual gauge, which may vary slightly due to drying and firing shrinkage during the manufacturing process.



Features

Highly Recommended
The Monopole No1 Huguenot is made at Wardrecques in the north of France. It's a small format tile, with a slight camber and a roll.

Recommended for its quality
The Monopole No.1 Huguenot is highly recommended and thanks to the efficiency of the production site at Wardrecques, the level of finish is beyond reproach.

 Made for the North!
This contemporary tile, because of its size and colour scheme, is perfectly suited to newbuild and renovation in the north of France.



  • Discreet modular size
  • Wide range of attractive colours
  • Ideal for new buildings and renovation
  • 30-year durability guarantee at 25° minimum roof pitch
  • Natural Product (Silicone Free)
  • Compatible with EDILIANS PV Modules



Installation
All tiles, ļ¬ttings & accessories should be installed in accordance with the recommendations given in BS 5534: the British Standard Code of practice for slating & tiling. Sitework should be carried out in accordance with BS 8000-6: the British Standard for workmanship on building sites. Contact Edilians Technical Support.



Colours

Natural Red

Burnt Red

Rustic Red

Nuance

Vieux Nord

Weathered

Gloss Black

Downloads

Edilians Monopole No.1 Brochure.pdf Edillians Product Brochure.pdf
