HP10 Interlocking Clay Tile
This modern tile has proved to be a natural winner on countless new build projects. It is suitable for traditional or modern dry-fix installation and is available in six distinctive colours. This tile’s large modular size, combined with a variable gauge, ensures ease of fixing and economy. It is the natural and cost-effective alternative to many large-format concrete tiles and slates.
Manufacturing Standards
Edilians tiles fully comply with the requirements of BS EN 1304; the European Standard for clay tiles & fittings & are manufactured under a Quality Management system certifi ed to comply with ISO 9001.
Technical data
Quantity per pallet:
240 tiles
Coverage at 376mm gauge:
10.0 tiles per m2
Batten gauge (variable):
10mm minimum - 376mm maximum
Overall length:
460mm
Overall width:
306mm
Cover width:
268mm
Minimum head lap:
84mm
Weight per tile:
4.3kg
Weight per m2 at maximum gauge:
43kg
Minimum roof pitch:
17.5° (sheltered areas only) *
Batten coverage m2 at 376mm gauge:
2.68m
Batten sizes:
38 x 25 mm for rafter centres up to 450mm.
50 x 25 mm for rafter centres up to 600mm
*Contact McCann Technical Support for advice
Features
A contemporary tile
The EDILIANS HP10 interlocking roof tile, manufactured at EDILIANS’ St Germer de Fly factory in northern France, is a large module interlocking clay roof tile with a thin tapered leading edge. Economical: The slate colour tile can be specified as an economical natural alternative to man-made and other slates. This modern tile has proved to be a natural winner on countless new build projects. Slate appearance: This modern tile with a tapered leading edge has proved to be a natural winner on countless new build projects. Design: The HP10 Huguenot is decidedly modern in appearance. It brings contemporary shades that are particularly well-suited to newbuild.
Designed to be laid broken bonded. Dry fixing is recommended at ridges, hips and verges. A wide range of matching accessories is available to complete a traditional roof design to conform with current standards. The HP10 provides a low roof pitch solution guaranteed down to 17.5°.
- Large tile for economical coverage
- Variable gauge for ease of installation
- Thin, attractive leading edge
- Double nail hole facility
- Natural product (Silicone Free)
- Low roof pitch suitability (17.5°)
- Compatible with EDILIANS PVt Modules
Colours
Natural Red
Burnt Red
Argentique
Quartz Grey
Brown
Slate
Downloads

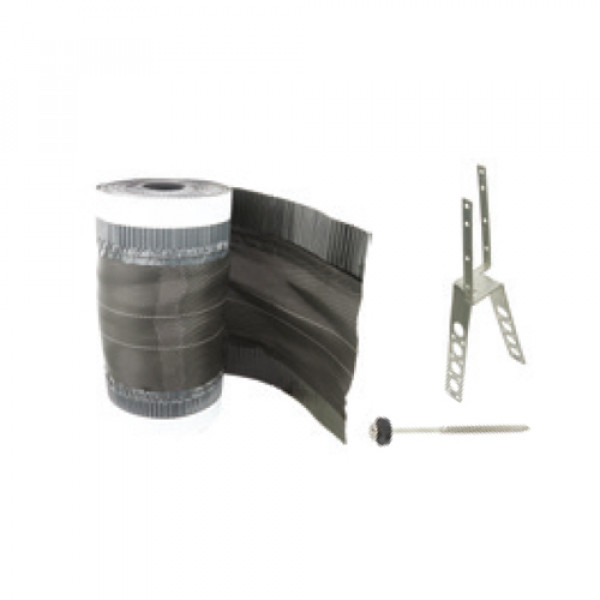

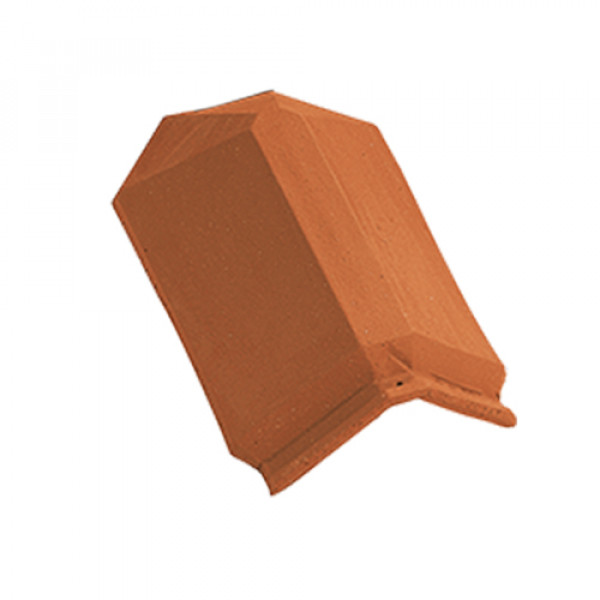

Edilians HP 10 Brochure.pdf Edillians Product Brochure.pdfHP10 Interlocking Clay Tile Options & Accessories
