HP17 Small Format Flat Interlocking Clay Tile

Technical data

Quantity per pallet:
420 tiles

Coverage at 285mm gauge:
17.2 tiles per m2

Batten gauge (variable)*:
222mm minimum - 285mm maximum

Overall length:
358mm

Overall width:
246mm

Cover width:
204mm

Minimum head lap:
73mm

Weight per tile:
2.6kg

Weight per m2 at maximum gauge:
44.7kg

Minimum roof pitch:
20.0°

Batten coverage m2 at 285mm gauge:
3.51m

Batten sizes:
38 x 25mm for rafter centres up to 450mm.
50 x 25mm for rafter centres up to 600mm.

Tile nail:
50 x 3.35mm aluminium clout head

 * Always check each batch of tiles delivered to site to determine the actual gauge, which may vary slightly due to drying and firing shrinkage during the manufacturing process

Features

Value you can count on
You can count on the HP17 when it comes to resistance and optimum water tightness. The outlets at the top of the tile fulfil their essential function of keeping the roof watertight. They are effective without looking unsightly, as, once the tile is installed, they are invisible. As for the central reinforcement bars on the underside of the tile, they ensure great stability and the reassurance of knowing you have a quality roof that will resist the worst of the weather. With these technical qualities, allied to a choice of 5 colours and stunning good looks, what more could you wish for? Smooth finish: Precise manufacturing processes and a bevelled leading edge ensure that an attractive finish is attained with smooth precise lines. An economic format with 17 tiles per m2, at the nominal gauge, installation is quick and easy providing an economical alternative to Natural and Man-Made slate suitable for all contemporary buildings. The HP17 has a minimum roof pitch guarantee of 20°.

• Variable gauge for ease of installation
• Optimal waterproof qualities
• High mechanical resistance
• Low roof pitch guarantee
• Natural Product (Silicone Free)
• 30-year durability guarantee
• Compatible with EDILIANS PV Modules

Installation
All tiles, fittings & accessories should be installed in accordance with the recommendations given in BS 5534: the British Standard Code of practice for slating & tiling. Sitework should be carried out in accordance with BS 8000-6: the British Standard for workmanship on building sites. Contact Edilians Technical Support

Colours

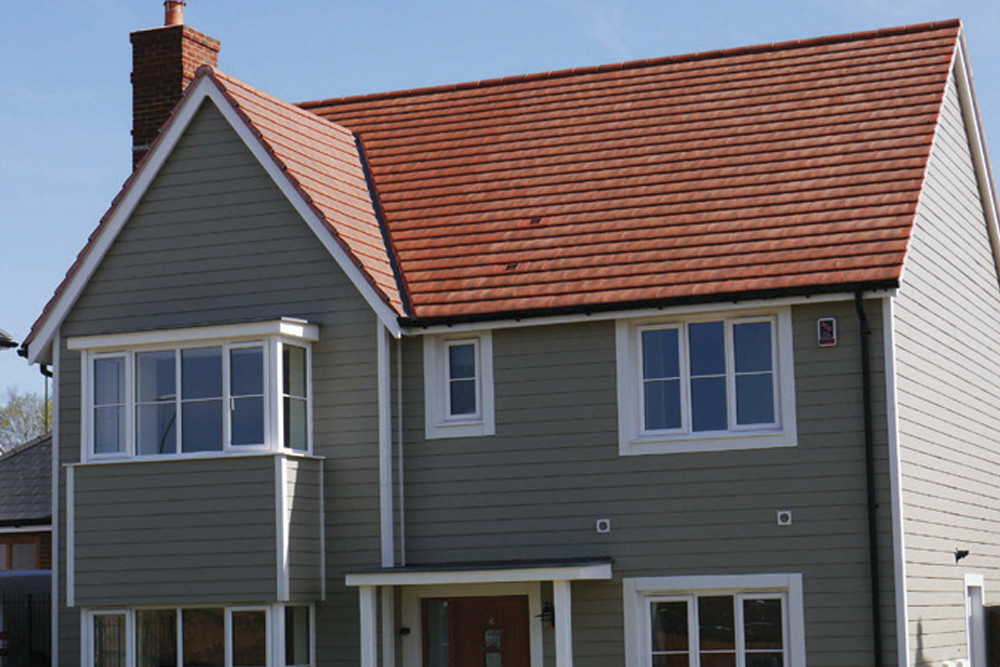

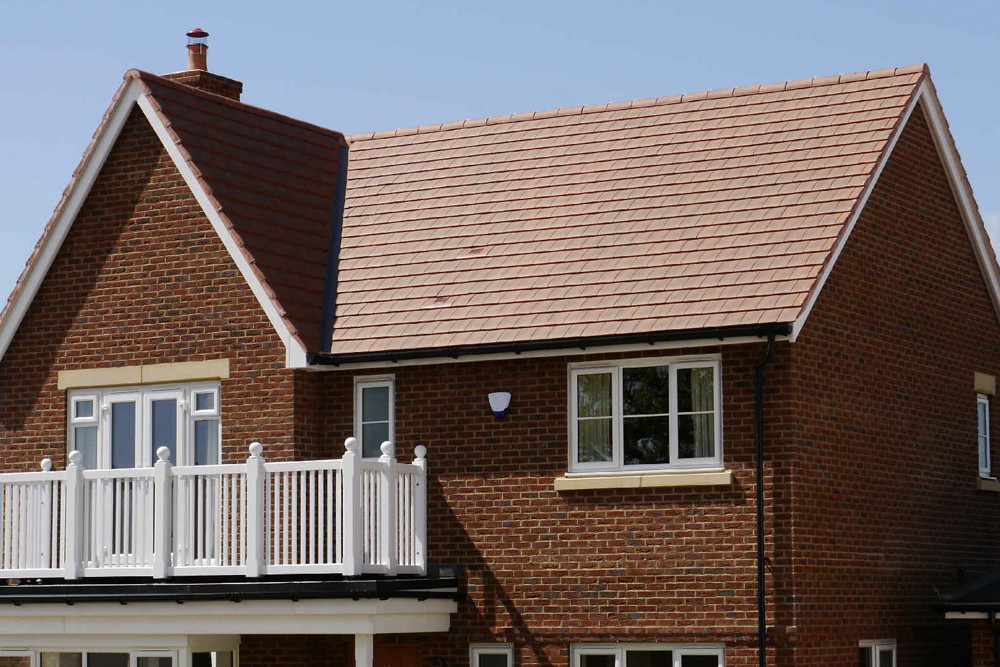

Burnt Red

Valle De Chevreuse

Terre De Beauce

Brown

Slate
