Minimum Roof Pitch 15º
With the most modern production facilities and special preparation treatments, we ensure consistency and long-lasting quality and an energy-conscious production process as well as a recycling concept, enhances our contribution towards a clean environment.
H-15 is suitable for roof pitches down to 15º, is available in five striking colours, and has an open gauge - making it easy to lay.
Technical data
Length:
410 mm.
Width:
260 mm.
Gauge:
322 mm. to 342 mm.
Covering Width:
200 mm ± 2.0 mm.
Minimum roof pitch*
15º
Number of tiles per m2:
14.6.
Weight per tile:
3.2 kg.
Weight per m2 (min.)
46.72 kg.
Battens required per m2 (min)
2.9
Batten size (mm)
50 x 25
Tile Nails (alloy mm)
40 or Clipped
Please note all tiles and slates should be fixed in accordance
with manufacturers' requirements and BS 5534
Features

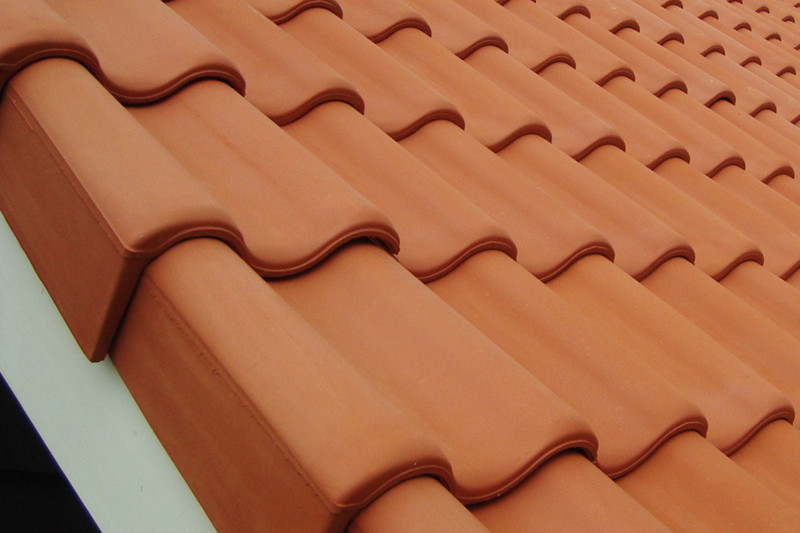

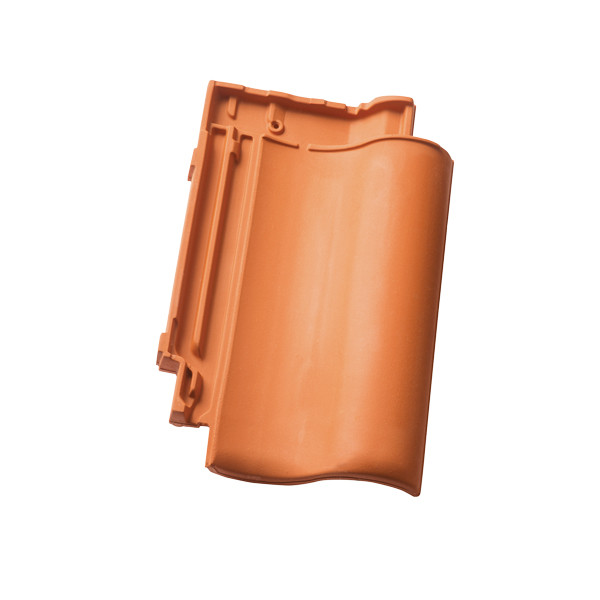

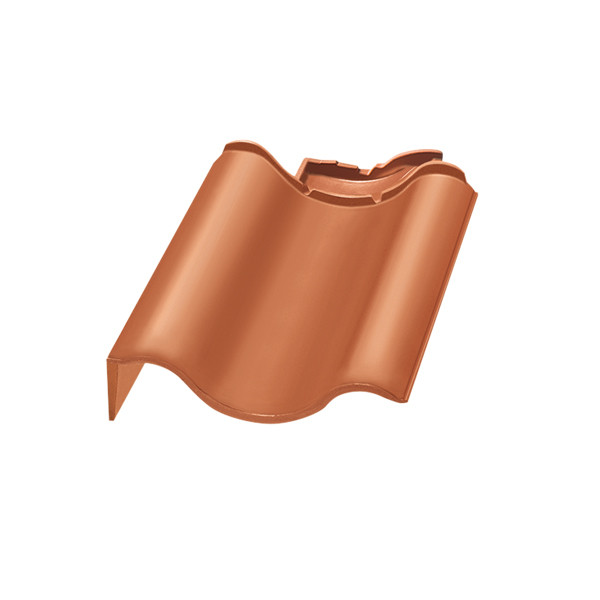

The H15 clay pantile is yet another example from our clay tile portfolio that is proving to be an inspired choice when used with both modern and traditional styles of architecture as well as renovation works.
- High-quality clay tile
- Minimum roof pitch 15º
- Long term durability
- Eco friendly
- Low maintenance
- Economical
- Wide range of fittings
- Only 14.6 tiles per m2
- Variable gauge 322 – 342mm
- Quick, easy & secure installation
Fittings:

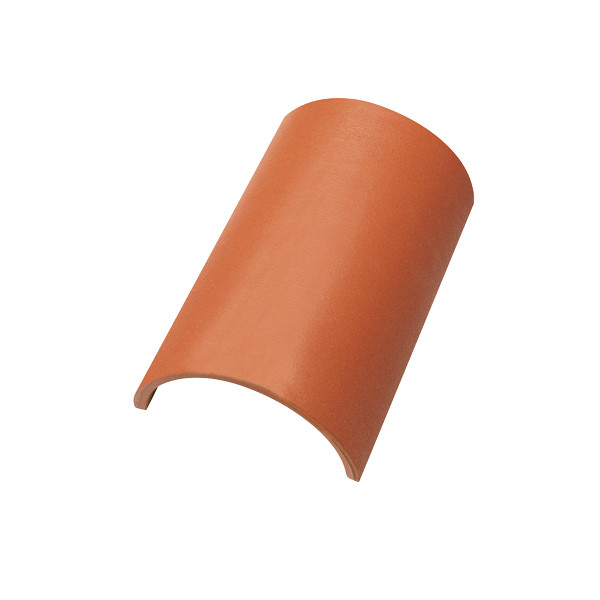

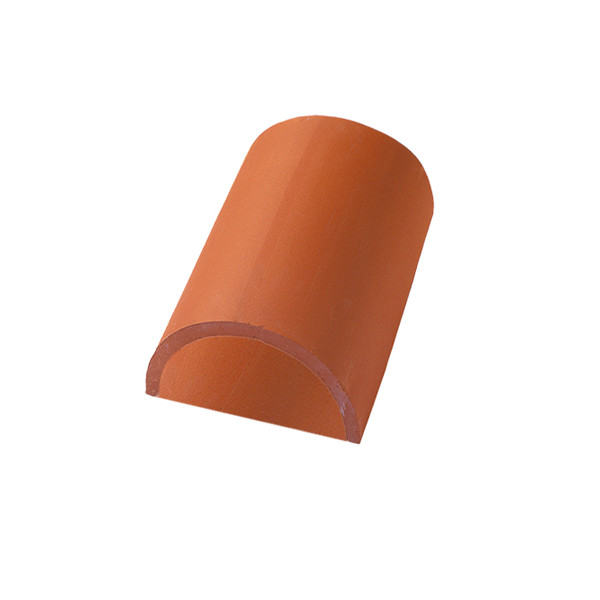

- Half Round Ridge (2.4 per m1)

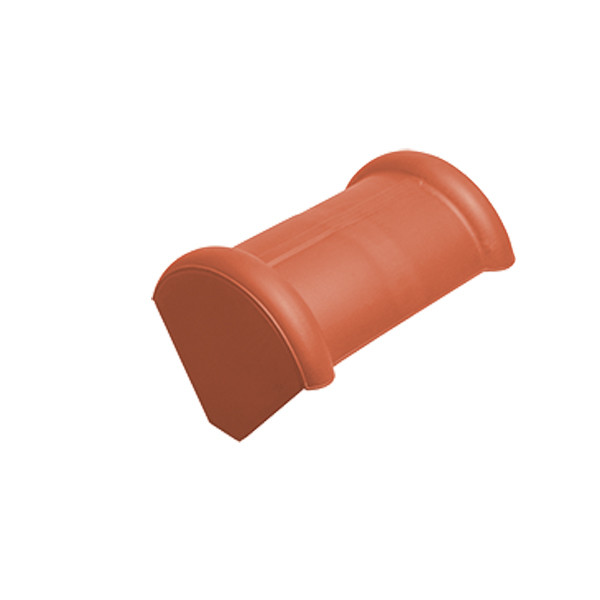

- Half-Round Interlocking Ridge (3.0 per m1)
- Double Roll Tile

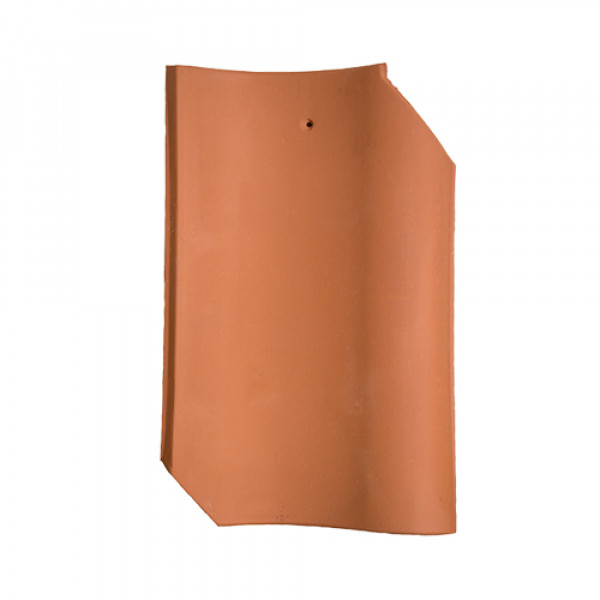

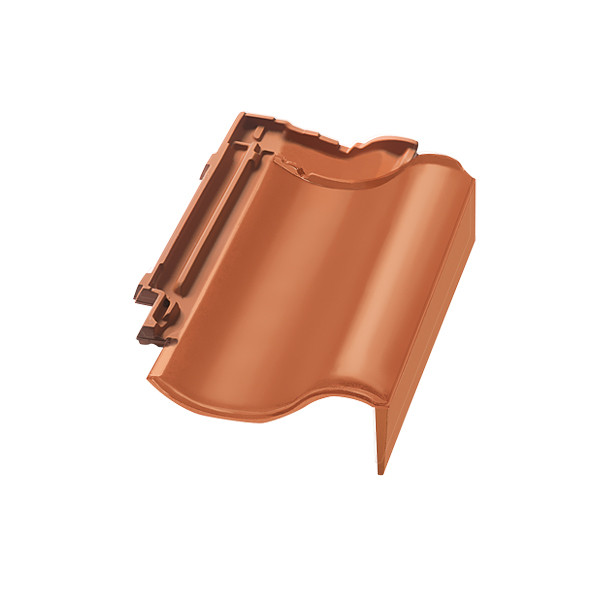

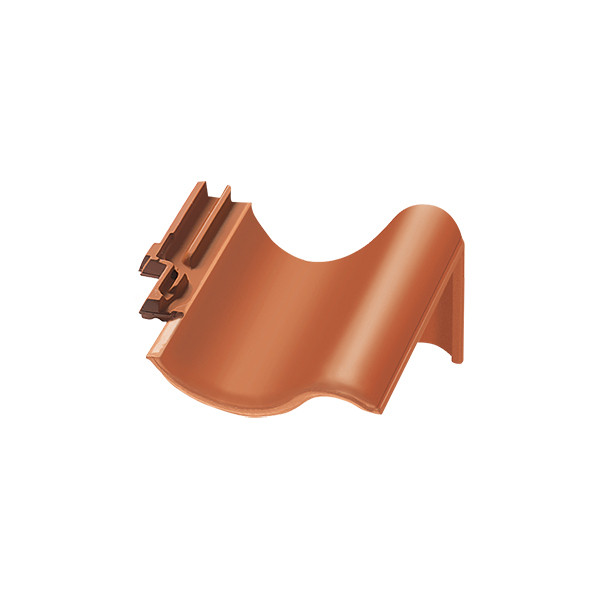

- Cloaked Verge Tiles, left and right (download info card for more details)
Manufactured to comply with the requirements of EN1304 European Standard for Clay Roof Tiles
Colours
Natural Red
Toscana

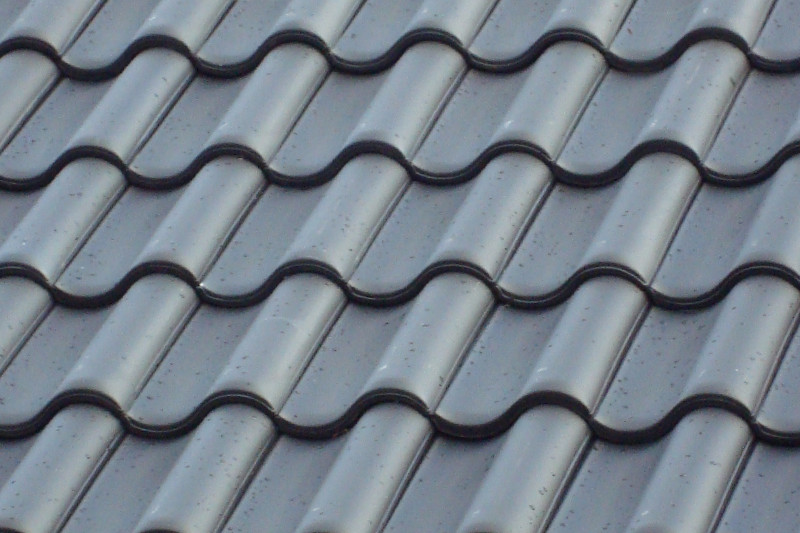

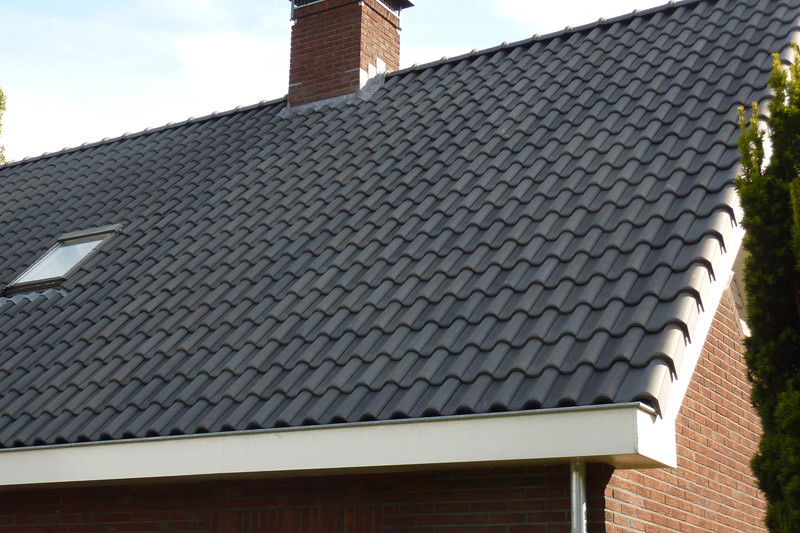

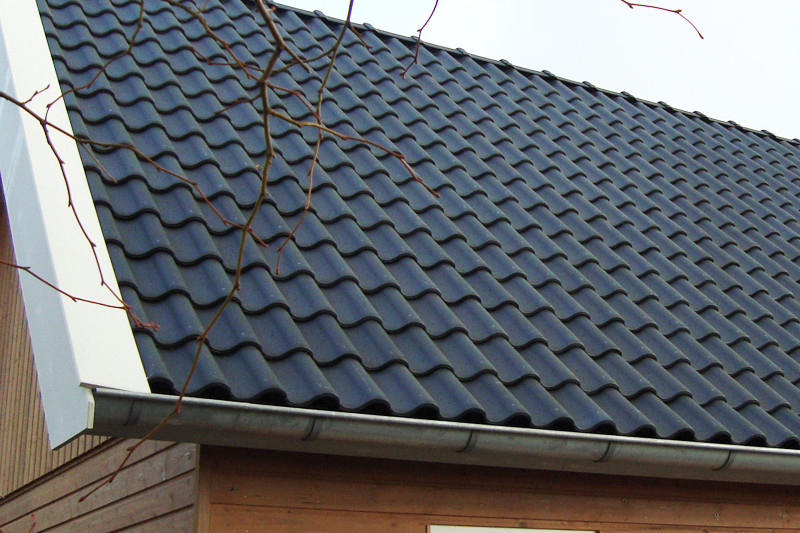

Heritage Black
Matt Black
Blue Reduced
Downloads
H15 Info Card.pdf DOP H15 Clay Roof Tile.pdf Environmental Product Declaration.pdfH15 Clay Pantile Options & Accessories
