V10 Double Flat Clay Tile

The V10 is a multi-purpose large format tile manufactured at our Schermbecker Factory to the highest standards.

V10 Double Flat Clay Tile
The double interlocking V-10 clay roof tile is the result of combining two small-format tiles into a single tile with its mock bond feature. This major technical innovation offers both the good looks of small tiles and the rapid installation of large format tiles.  This 2 in 1 tile is the result of different technical aspects which we judge to be indispensable to the installation and durability of a roof. Once installed, the appearance of the double V-10 is very similar to that of a plain tile. It offers all the quality and durability of our interlocking tiles. Moreover, thanks to its side interlocks and its invisible outlets, it offers outstanding water tightness and can be installed at roof pitches as low as 17.5°.

Manufacturing Standards
RDUK Roofing Products European manufacturing partners Schermbecker fully comply with the requirements of BS EN 1304; the European Standard for clay tiles & fittings is manufactured under a Quality Management system certified to comply with ISO 9001.

Technical data

Size of tile:
415.5mm x 303.2mm

Tile covering size:
388.8mm x 237.5mm

Minimum pitch*:
17.5°

Maximum pitch:
90°

Tile thickness:
11mm

Coverage:
10.3 to 11.4 tiles/m²

Batten Gauge:
225 to 250mm

Battens m²:
4 to 4.4 Linea m²

Batten size:
50mm x 25mm

Headlap variation:
25.0mm

Middle cover width:
388.8mm

Shunt:
3.0mm

Tile weight:
3.66 kg

 Authority:
BS EN 1304

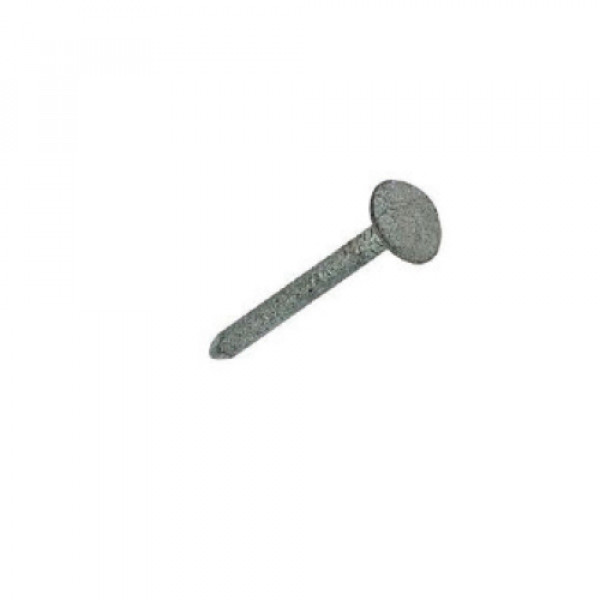

Nails - ring shank aluminium alloy:
45 x 3.35mm

 * The minimum recommended pitch and lap may be influenced by special circumstances, please contact our sales team.

Features

  • High-quality clay
  • Minimum roof pitch 17.5°
  • Only 10.3 tiles per m2
  • Long term durability
  • Eco friendly
  • Low maintenance
  • Wide range of fittings
  • Quick, easy & secure installation

Installation
All tiles, fittings & accessories should be installed in accordance with the recommendations given in
BS 5534: the British Standard Code of practice for slating & tiling. Sitework should be carried out in accordance
by BS 8000-6: the British Standard for workmanship on building sites. Contact RDUK for technical support including estimates and fixing specifications.

30 year manufacturer's guarantee
The Schermbecker clay tile collection is guaranteed for a minimum of 30 years from the date of supply, subject to the company's normal terms of guarantee and conditions and also provided that they have been installed in accordance by BS 5534 & BS 8000-6.

All sizes are approx. Tolerances according to DIN EN 1304.
Covering sizes are to be determined on-site. Subject to technical changes. Site-specific fixing specifications are available on request.
Please note: Mix tiles from at least 3 different pallets of tiles when loading out.

Colours

Natural Red

Toscana

Dark Rustic

Matt Black

Downloads

RDUK V10 Clay Tile Data Card Brochure.pdf
