Covering Capacity - 9.8 tiles/m2
RDUK Exmoor Duo Tile is a modern yet characteristic concrete tile. The clean lines and variety of stylish colours provide a minimalistic finish whilst allowing you to get a unique finish on your roof. At the same time, these tiles are recognised for their incredible durability having undergone tough testing and been made with proven manufacturing techniques.
Technical data
Size:
420mm x 334mm
Weight:
4.7kg
Minimum Pitch:
100mm headlap - 17.5° 75mm headlap - 22.5°
Cover Width:
305mm
Weight of Tiling:
75mm headlap - 45kg/m2 - 100mm headlap - 49kg/m2
Batten Size:
50 x 25mm (rafters not exceeding 600mm c/c)
Tiles per Band:
38
Thickness:
19.5mm
Minimum Headlap:
75mm (normal exposure)
Maximum Gauge:
345mm
Covering Capacity:
75mm headlap - 9.7 tiles/m² - 100mm headlap - 10.5 tiles/m²
Nail Size:
40mm x 3.35mm - Aluminium Alloy
Tiles per Pallet:
228
Weight of Pallet:
1086kg
Full Load
24 Pallets

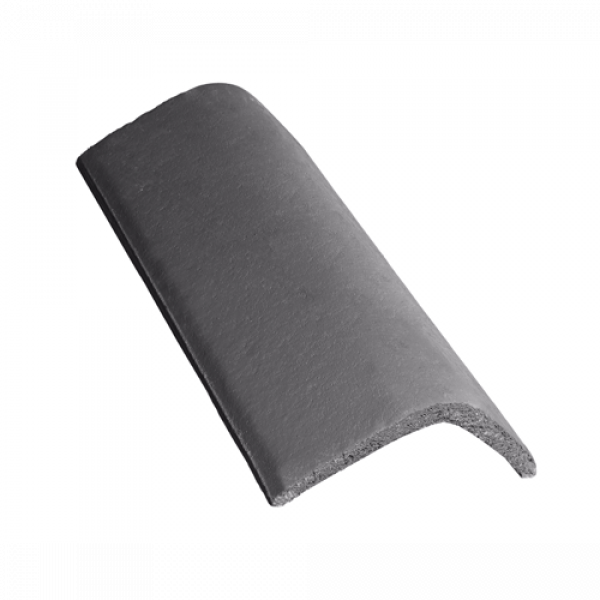

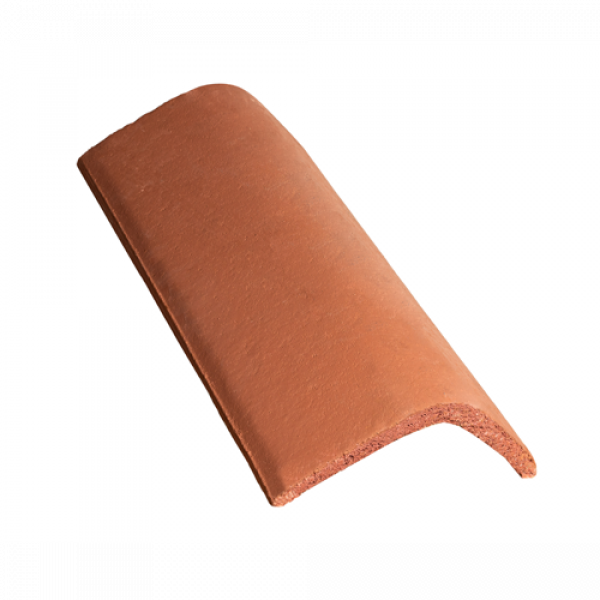

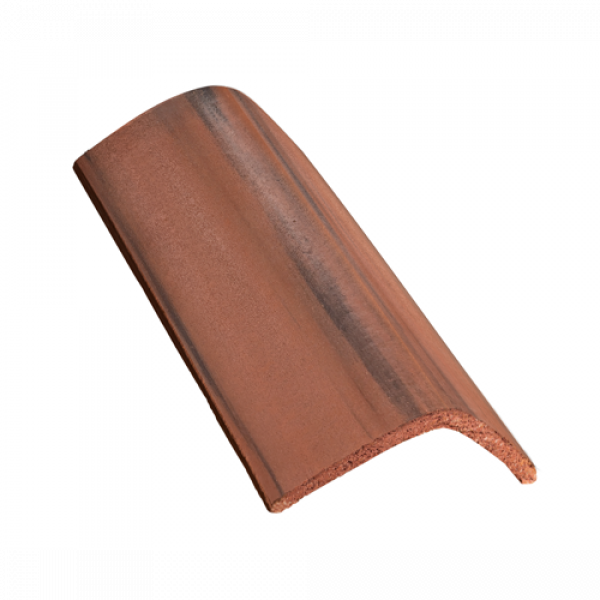

Tileworks Apex Ridge (see below)
Size: 457mm x 250mm
Weight: 5kg
Maximum Roof Pitch: 45°
Ridge Tiles per Pallet: 140
Please note all tiles and slates should be fixed
in accordance with manufacturers' requirements and BS 5534.
Features
These flat concrete tiles are laid broken bonded, made easy with their interlocking edge. The tile size is 420mm in length and 334mm in width with hassle-free installation, which is a great advantage and beneficial for the total cost per square metre.
These tiles are ideal for new construction or renovation projects. To compliment the tiles why not see our Apex Ridge Tile available in all colours to match perfect with your roof. RDUK tileworks concrete tiles have a coloured core, as a result of which small damages or saw cuts will barely catch the eye.
- Excellent price-quality ratio (they are significantly cheaper than clay roof tiles)
- Roof pitches as low as 17.5°
- Easy to install
- Flat concrete tiles are very suited for modern architecture
- High resistance to moisture
- Resistance to cracks and bending
- Great choice of tile and ridge colours
- Small ecological footprint (raw materials are plenty available with little energy required for the production
Tile vent range
Our collection of vent tiles is available on our small, medium and large format clay and concrete roof tiles. The vents are manufactured to a high standard and are available in all colours and made to blend in discreetly with our existing roof tile product range, offering the perfect solution to roof space ventilation.
Colour options
Vent tiles are available in five standard colours to match your RDUK roof tiles:
- Brown
- Terracotta
- Antique Red
- Grey
- Anthracite
For further details contact our sales team or download the data sheet in our download section opposite.
Colours
Anthracite
Grey
Red
Brown
Rustic
Riven Slate Textured Surface
Exmoor Duo Vent Tile
Downloads
RDUK - Tileworks Brochure Data Card.pdf RDUK Concrete Tile Vents Data Card.pdfExmoor Duo Concrete Smooth Flat Tile Options & Accessories
