Exmoor Concrete Smooth Flat Tile

Technical data

Size:
420mm x 334mm
Weight:
4.7kg
Minimum Pitch:
100mm headlap - 17.5° 75mm headlap - 22.5°
Cover Width:
305mm
Weight of Tiling:
75mm headlap - 45kg/m2 - 100mm headlap - 49kg/m2
Batten Size:
50 x 25mm (rafters not exceeding 600mm c/c)
Tiles per Band:
38
Thickness:
19.5mm
Minimum Headlap:
75mm (normal exposure)
Maximum Gauge:
345mm
Covering Capacity:
75mm headlap - 9.7 tiles/m² - 100mm headlap - 10.5 tiles/m²
Nail Size:
40mm x 3.35mm - Aluminium Alloy
Tiles per Pallet:
228
Weight of Pallet:
1086kg
Full Load
24 Pallets

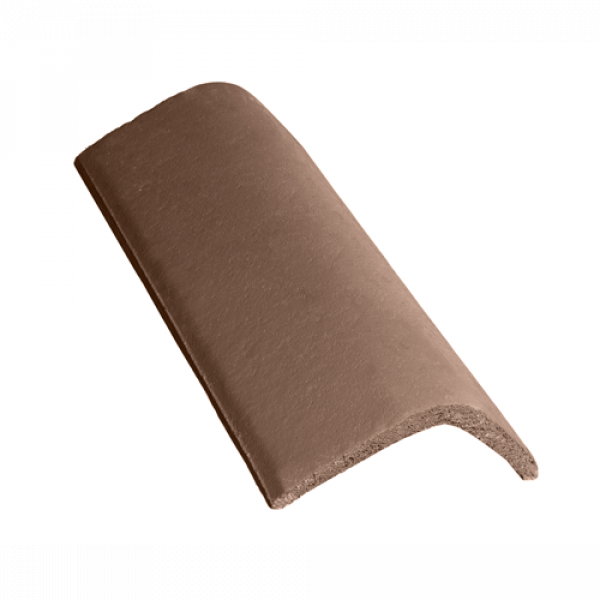

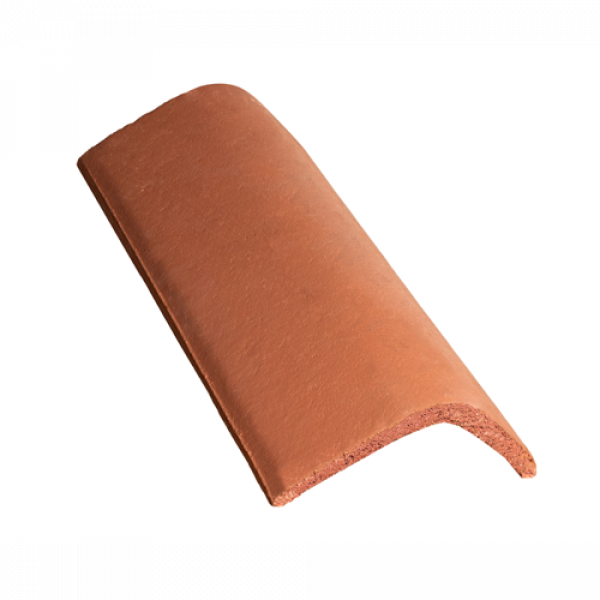

Tileworks Apex Ridge (see below)
Size: 457mm x 250mm
Weight: 5kg
Maximum Roof Pitch: 45°
Ridge Tiles per Pallet:140

Please note all tiles and slates should be fixed in accordance with manufacturers' requirements and BS 5534.

Features

These flat concrete tiles are laid broken bonded, which is made easy with their interlocking edge. The tile size is 420mm in length and 334mm in width with hassle-free installation, which is a great advantage and beneficial for the total cost per square metre.

These tiles are ideal for new construction or renovation projects. To compliment the tiles why not see our Apex Ridge Tile available in all colours to match perfectly with your roof. RDUK tileworks concrete tiles have a coloured core, as a result of which small damages or saw cuts will barely catch the eye.

• Excellent price-quality ratio (they are significantly cheaper than clay roof tiles)
• Easy to install
• Flat concrete tiles are very suited for modern architecture
• High resistance to moisture
• Resistance to cracks and bending
• Great choice of tile and ridge colours
• Small ecological footprint (raw materials are plenty available with little energy required for the production

Colours

Anthracite

Grey

Red

Brown

Rustic

Slate Riven Textured Surface
