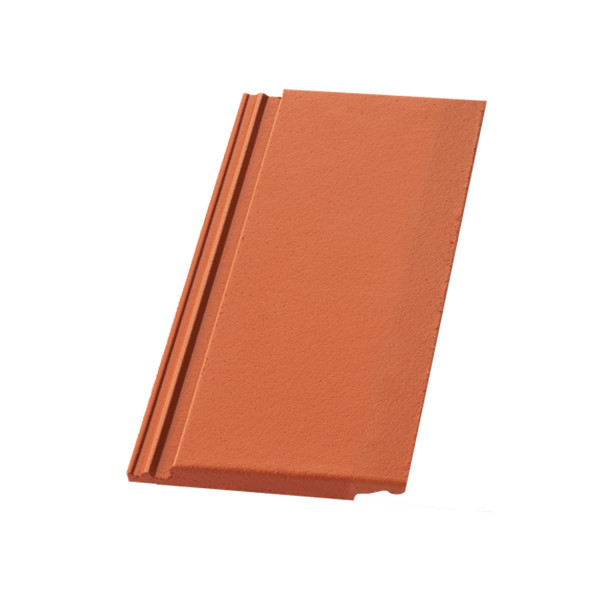

*Planum Duo Concrete Interlocking Flat Tile

Technical data

Length:
420mm

Width:
332mm

Gauge:
310 - 340mm

Headlap (min):
80mm (22.5º +).   100mm (17.5º+).   110mm (15º+)

Covering Width (mm):
300 ± 2.0

Minimum Roof Pitch:
15º @ 100m Head Lap

Number of Tiles Per m2:
9.8

Weight Per Tile:
5.0 kg

Weight Per m2 (min):
50 kg

Battens Per m2 (min):
3 - 3.2

Batten Size:
50 x 25 (600mm Centre)

Fixing Clips:
Eaves and Tile Clips

Nails – Ring Shank Aluminium Alloy:
45 x 3.35mm
Please Note: Fixing specs may vary due to roof pitch and location.

Low Pitch Roof Specification 17º - 15º:

• Lay Planum tiles broken bond.
• Headlap minimum 110mm.
• Use appropriate air and vapour permeable underlay, which does not require secondary roof ventilation.
• Lay the roof underlay to the manufacturer’s instructions.
• Maximum rafter length 7.5m.
• All tiles to be clipped with Crest purpose made tile clips, reference 409/202. Do not nail the tiles at 17˚ and below.
• Roof perimeters including, abutments and around roof windows must be securely fixed to BS 5534.

Features

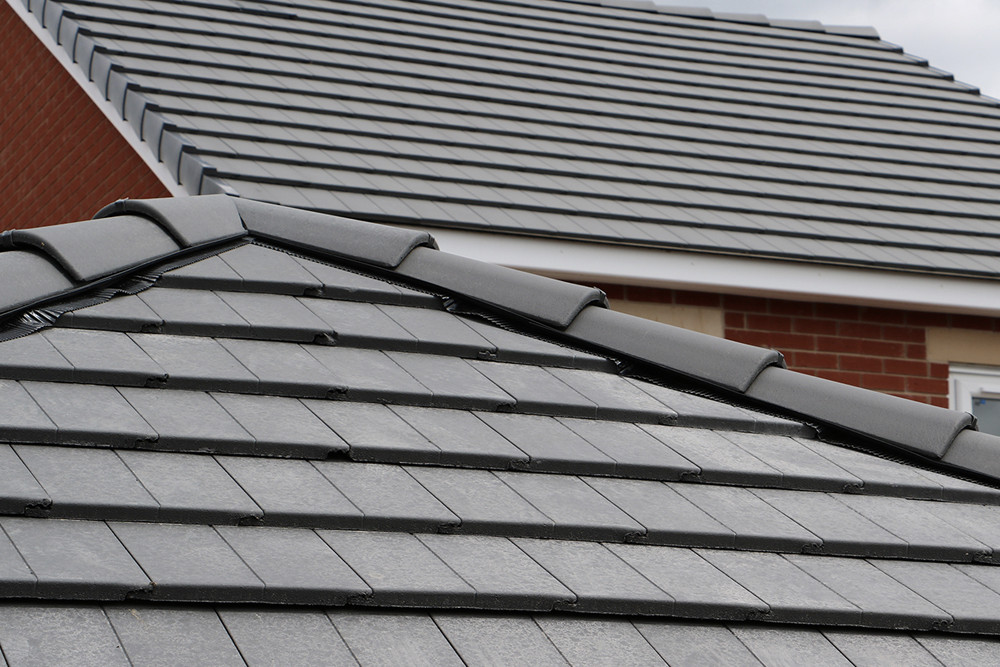

Our *Planum Duo Concrete tiles like the *Planum concrete, are also available in six different colours and with a wide range of fittings. It's thin leading edge and a covering capacity of just 9.8 tiles per m2 with a minimum roof pitch of 15° makes installation easy and economical. Laid broken bonded the Duo gives a realistic appearance of a smaller format roof tile while providing all the advantages of a large format concrete tile. The *Planum Duo concrete establishes a new standard for flat tiles, which everyone from architects to roofers will appreciate. It has an ultra-smooth flat finish and clean ‘pore-free’ edges make the finished roof look stunning.

• Superior quality interlocking flat tile
• Ultra-Smooth Flat finish
• Long Life Concrete Technology
• Thin Leading Edge
• Clean, Smooth ‘Pore Free’ Edges
• Economical – Only 9.8 tiles per m2
• Range of colours and quality fittings
• Faster, easy and secure installation
• Nelskamp 30 Year Guarantee

Popular Fittings Include:

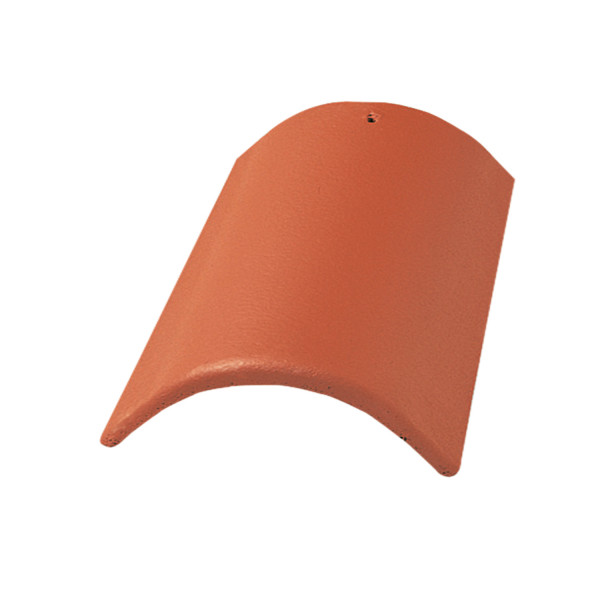

• Segmental Ridge Tile
• Left Hand Verge Tile
• Half Tile (handed)

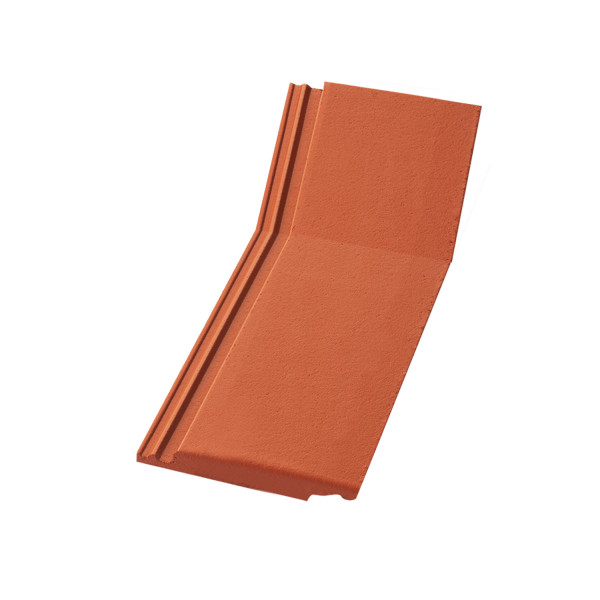

• Half Left Verge Tile

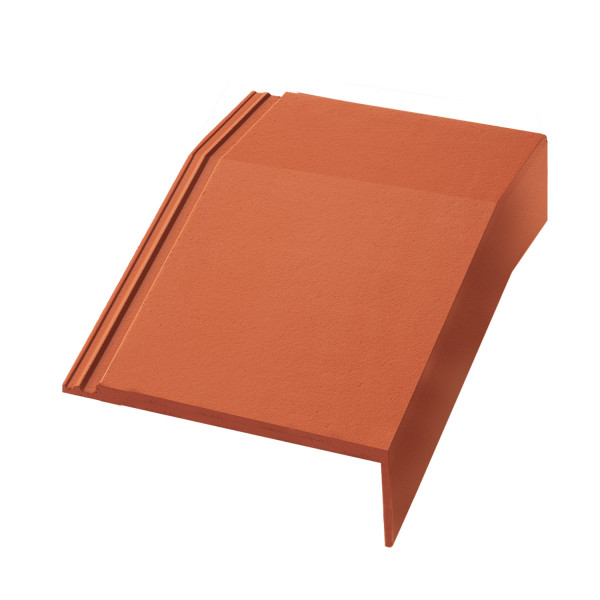

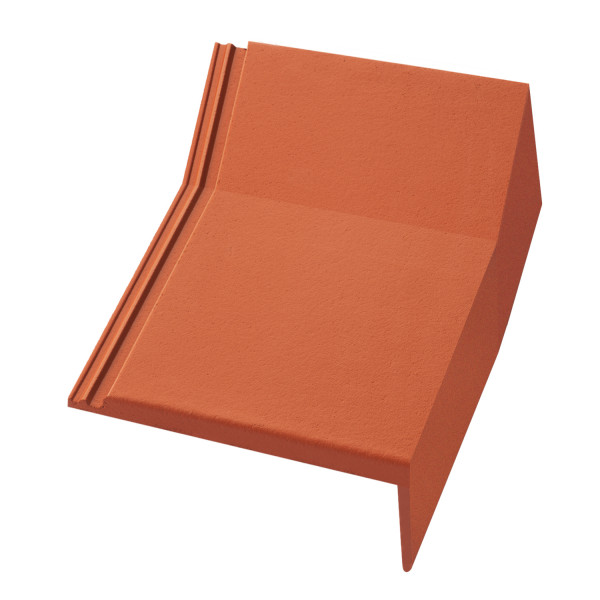

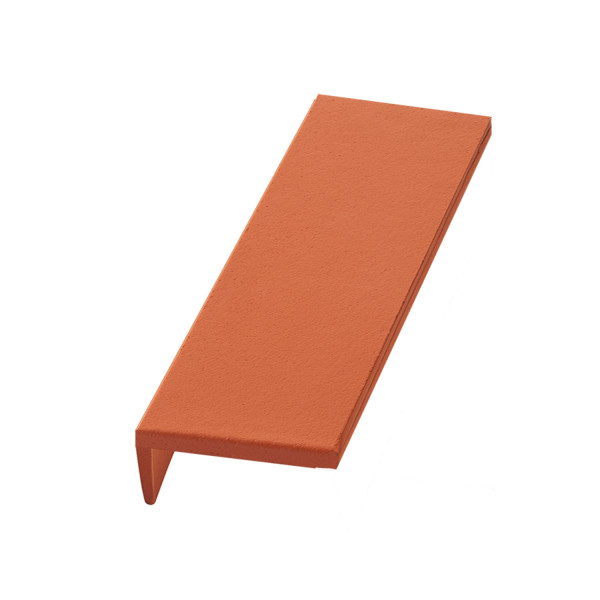

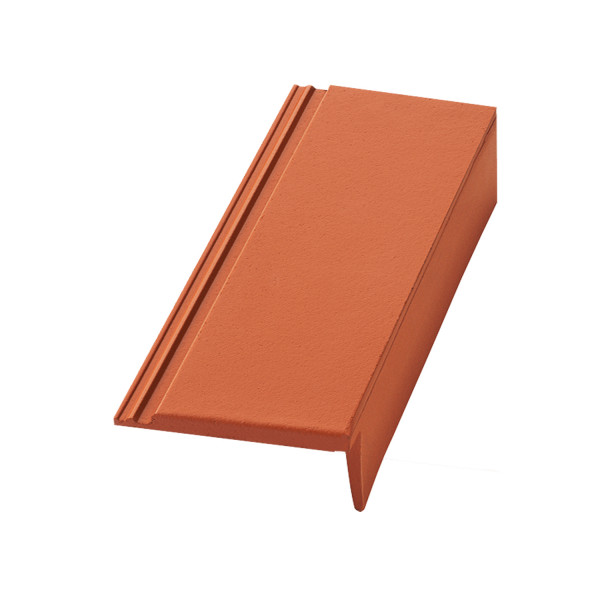

• Cloaked Verge Tiles, left and right.
• See slide show below for full range

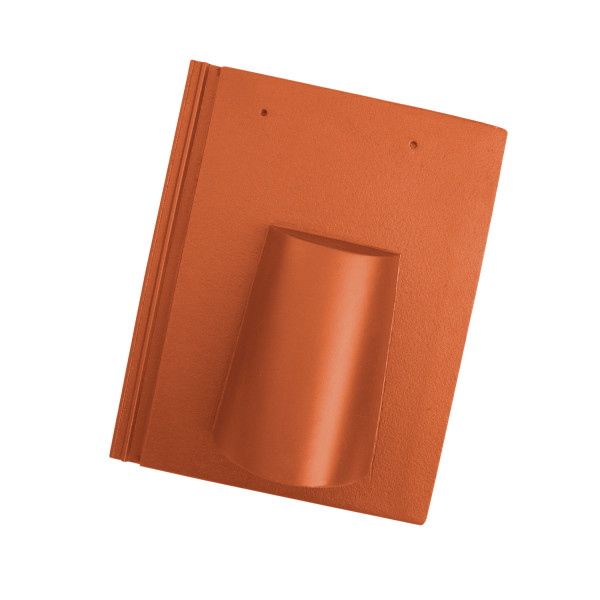

Tile vent range
Our collection of vent tiles is available on our small, medium and large format clay and concrete roof tiles. The vents are manufactured to a high standard and are available in all colours and made to blend in discreetly with our existing roof tile product range, offering the perfect solution to roof space ventilation.

Colour options
Vent tiles are available in five standard colours to match your RDUK roof tiles:

• Brown
• Terracotta
• Antique Red
• Grey
• Anthracite

For further details contact our sales team or download the data sheet in our download section opposite.

Manufactured to comply with the performance standards of EN490/491 and DIN Plus.

*As per European trademark Nr.7287956, filed on 2nd October 2008, the Trademark PLANUM belongs to La Escandella. It is Dachziegelwerke Nelskamp as authorized licensee of the owner allowed to use the mark PLANUM for its concrete product.
