SP10 Duo Format Clay Tile

SP10 is a modern technically advanced version of a traditional ‘Courtrai’ style roofing tile. The Crest Nelskamp SP10 Duo Format Clay Tile has a covering capacity of only 10.7 tiles per square metre, making it a very economical pantile. It is available in an attractive range of colours and finishes with a comprehensive range of fittings including cloaked verge tiles.

Minimum Roof Pitch 22.5º

With the most modern production facilities and special preparation treatments, we ensure consistency and long-lasting quality and an energy-conscious production process as well as a recycling concept, enhances our contribution towards a clean environment.

Technical data

Length:
300 mm.

Width:
417 mm.

Gauge:
235mm to 245 mm.

Covering Width
390 mm ± 2.0 mm.

Minimum roof pitch:
22.5º

Number of tiles per m2
10.

Weight per tile:
3kg.

 Weight per m2 (min.)
32kg

Please note all tiles and slates should
be fixed in accordance with manufacturers'
requirements and BS 5534.

Features

The SP10 Clay Tile offers a great choice for refurbishment, heritage or conservation area projects or if you are simply looking for something a little more distinctive for new build developments, the SP10 will provide a classic look to the finished roof.

  • Low-weight clay tile only 3.0kg
  • Ceramic quality clay
  • Easy to handle and quick to install
  • Straight bond or Half bond Fixing
  • Long term durability
  • Requires only 10.7 tiles/m2
  • Four heritage colours

Popular Fittings:

  • Half Round Ridge (2.4 per m1)
  • Half-Round Interlocking Ridge (3.0 per m1)

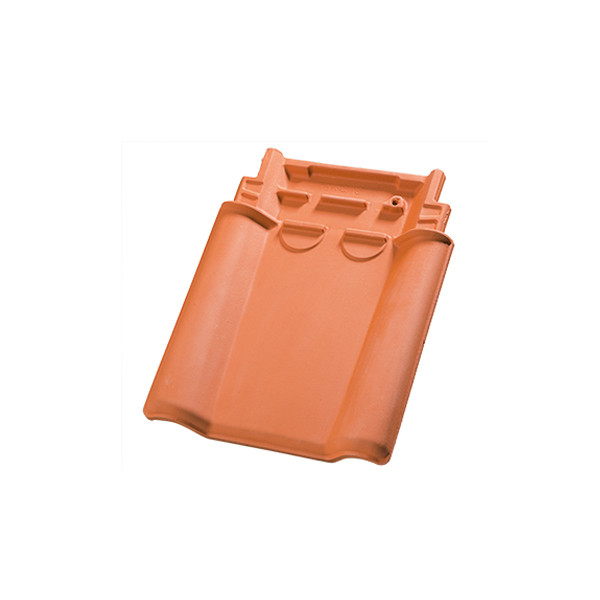

  • Cloaked Verge Tiles, left and right

Manufactured to comply with the requirements of
EN1304 European Standard for Clay Roof Tiles

Colours

Natural Red

Toscana

Blue Reduced

Matt Black

Downloads

SP10 Info Card.pdf Nelskamp Environmental Product Declaration.pdf

SP10 Duo Format Clay Tile Options & Accessories
